    Product Introduction:

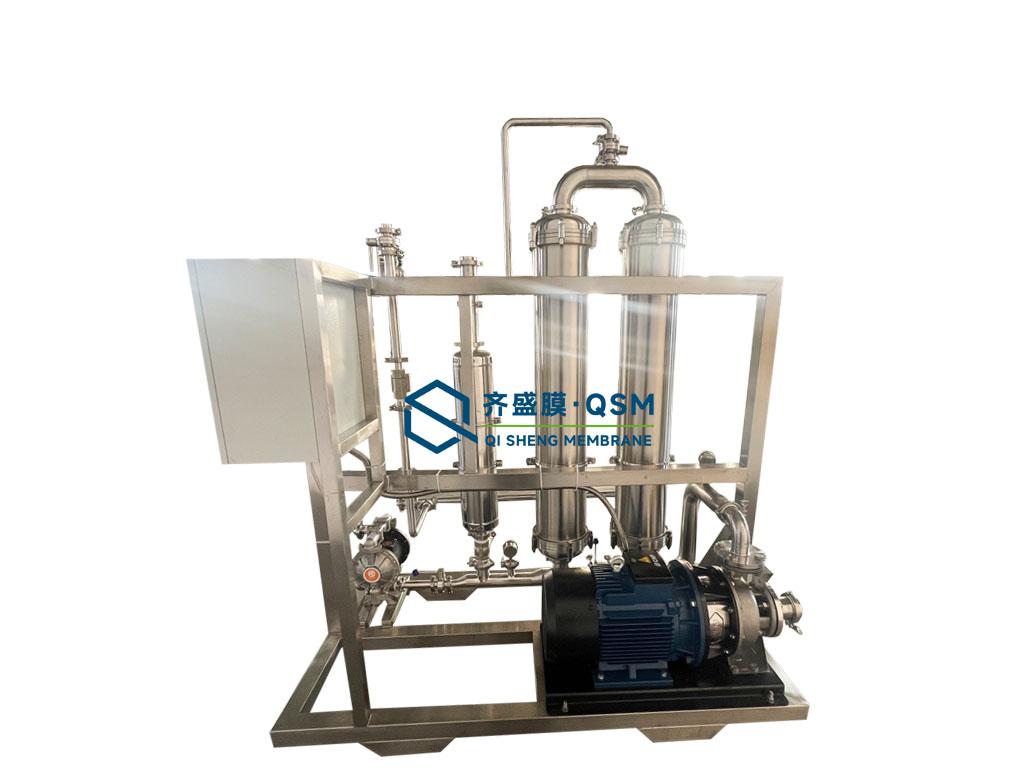

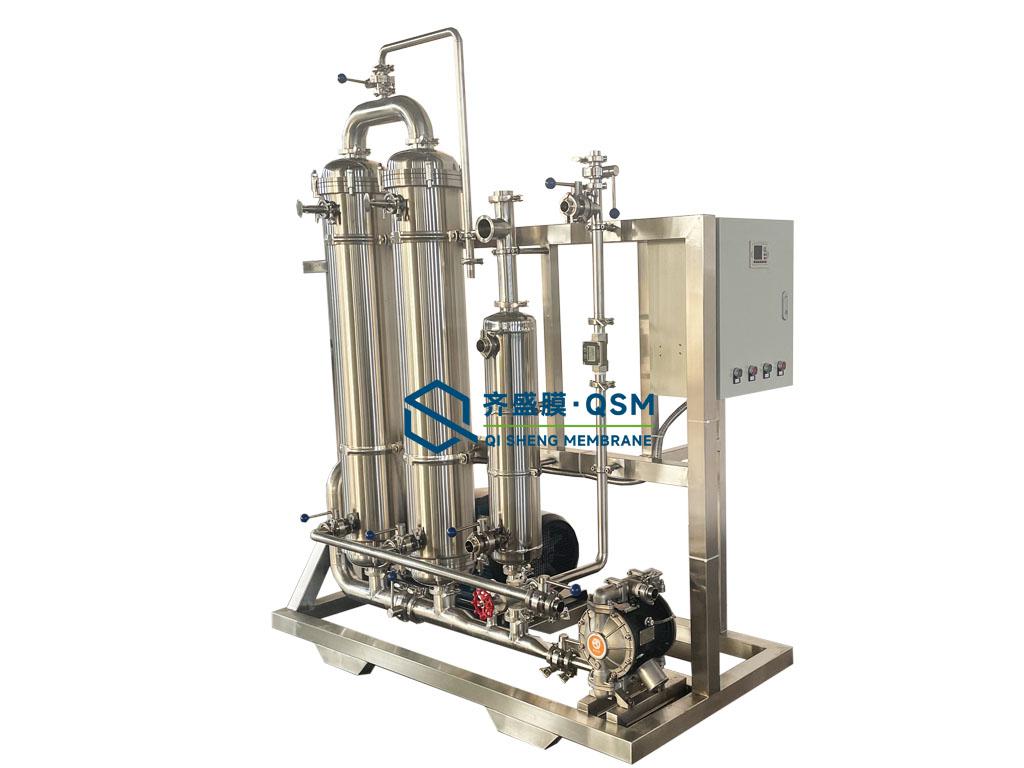

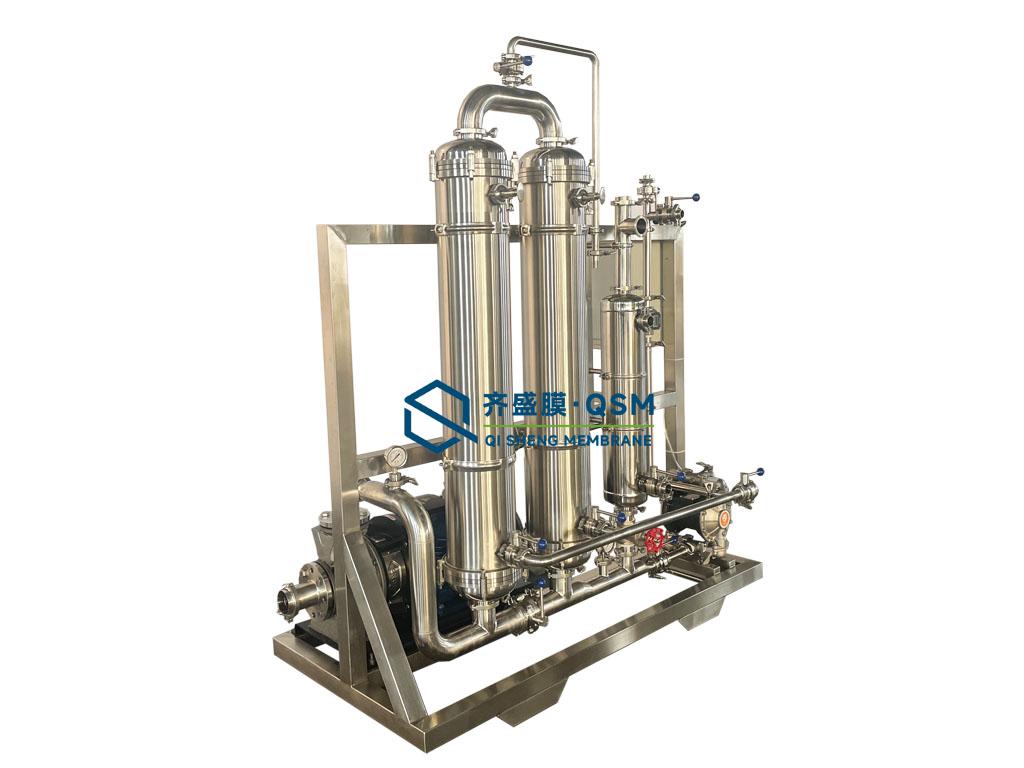

    Our series of equipment is available in dozens of specifications and models, categorized by varying filtration precision and membrane tube types (ceramic membranes or ceramic composite membranes), to accommodate the diverse requirements of different clients, systems, technical parameters, and processing capacities. It has been widely applied across numerous industries including food and beverage, plant (herbal) medicine processing, agricultural products processing, aquatic (marine) products processing, biomedicine, bio-fermentation, and fine chemicals, serving purposes such as clarification, sterilization, impurity removal, filtration, separation, and concentration.
    Product Details


    EQUIPMENT SPECIFICATIONS

    No. 1: Equipment Model - QSTC19-2-M
    No. 2: Operating Temperature - 0–80°C
    No. 3: Operating Pressure - 0–0.5 MPa
    No. 4: Pump Motor Power - 11 kW
    No. 5: pH Tolerance - 0–14 (broad range)
    No. 6: High-Pressure Section Pressure Rating - 1.0 MPa
    No. 7: Membrane Element - Model: QSM30-19-4-1200; Length: 1200mm
    No. 8: Membrane Element - Channel Configuration: 19 channels × 4mm; Outer Diameter: 30mm
    No. 9: Wetted Parts Material - SUS304
    No. 10: Control Mode - Manual control
    No. 11: Equipment Structure - Integrated mainframe design, skid-mounted structure
