I. Basic Information

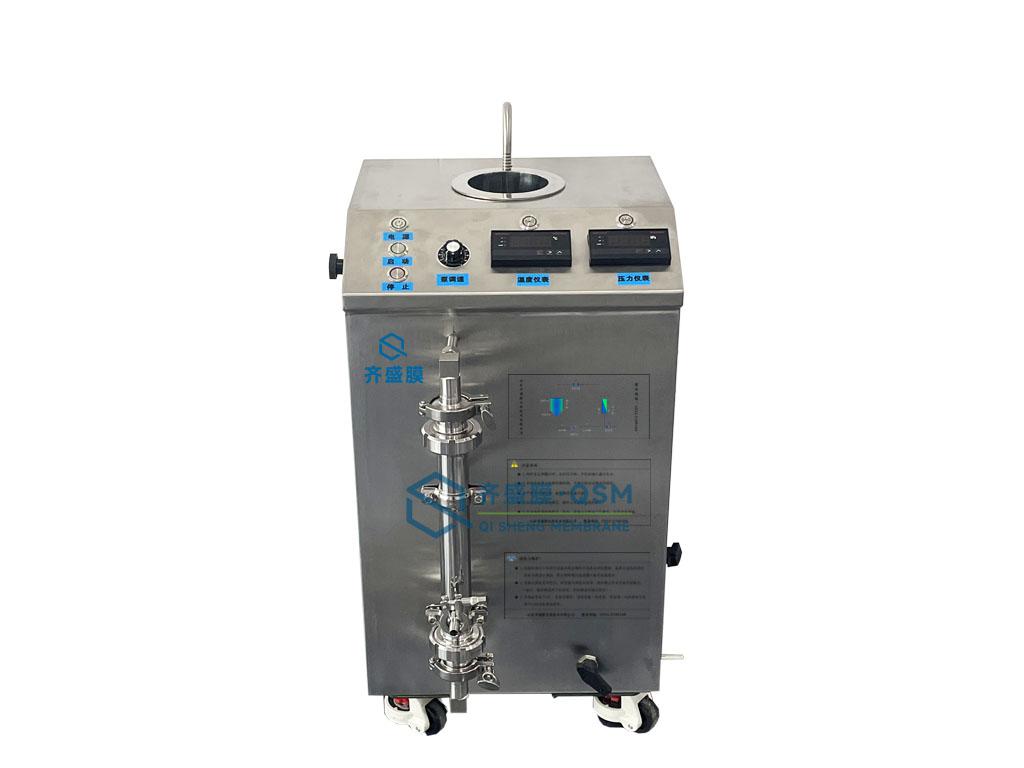

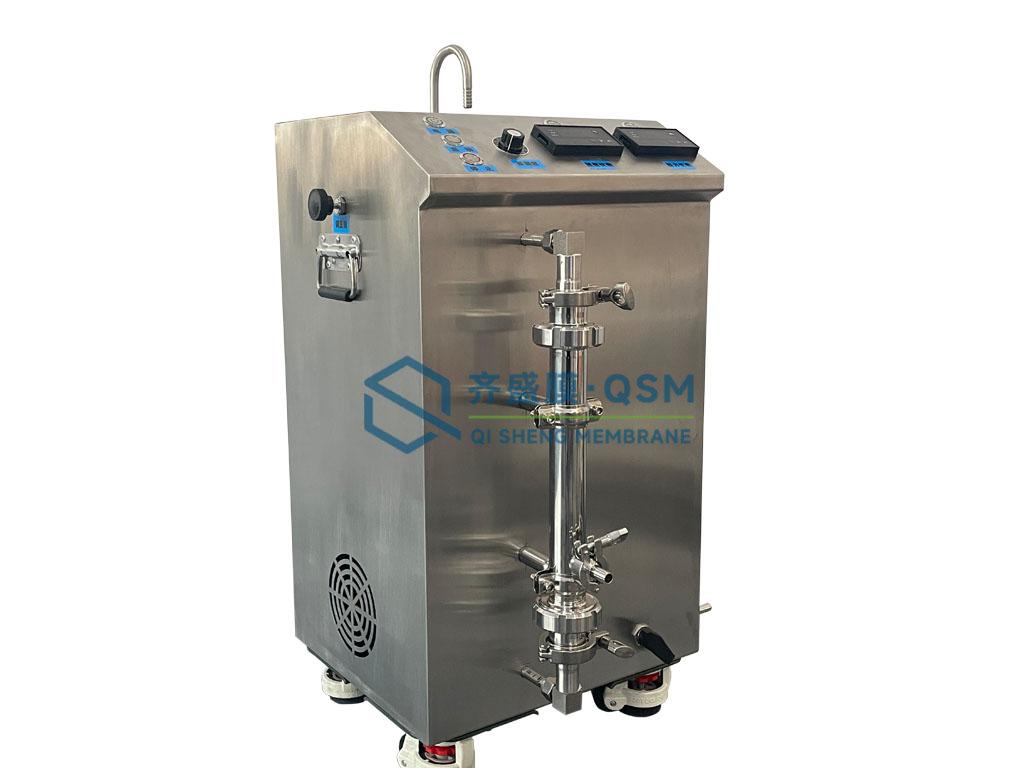

1. Equipment Name: Ceramic Membrane Pilot Unit

2. Model: QS-TC-21S

3. Technical Specifications:

III. Technical Specifications

• Minimum operating volume: approx. 200–500 mL

• Feed tank: 1 L with jacketed design for hot or cold water circulation

• Operating pressure: 0–0.8 MPa

• Allowable operating temperature: 0–50°C

• Motor power: 650 W

• pH range: 1–14

• Filtration rate: 0.5–10 L/h (depending on feed material and membrane element)

• Membrane elements: High-quality membrane elements manufactured in-house by our company. Interchangeable with other precision membrane elements.

• The membrane housing is designed based on fluid dynamics principles to ensure adequate crossflow velocity across the membrane surface, guaranteeing stable and reliable test data.

• Both internal and external surfaces of the piping are of high quality. All stainless steel welding is performed using automatic argon-shielded welding with single-sided welding and double-sided formation, ensuring excellent pressure resistance and corrosion resistance. The equipment frame is wire-drawn or polished; fillet welds, external butt welds, and nozzle ends are ground smooth and flush. The equipment surface is free of sanitary dead legs, featuring clean sanitary design, and is safe and reliable.

• Equipped with casters, lightweight, and easy to move.

• Equipment dimensions: approx. 680 mm (L) × 500 mm (W) × 700 mm (H).
