Product Introduction

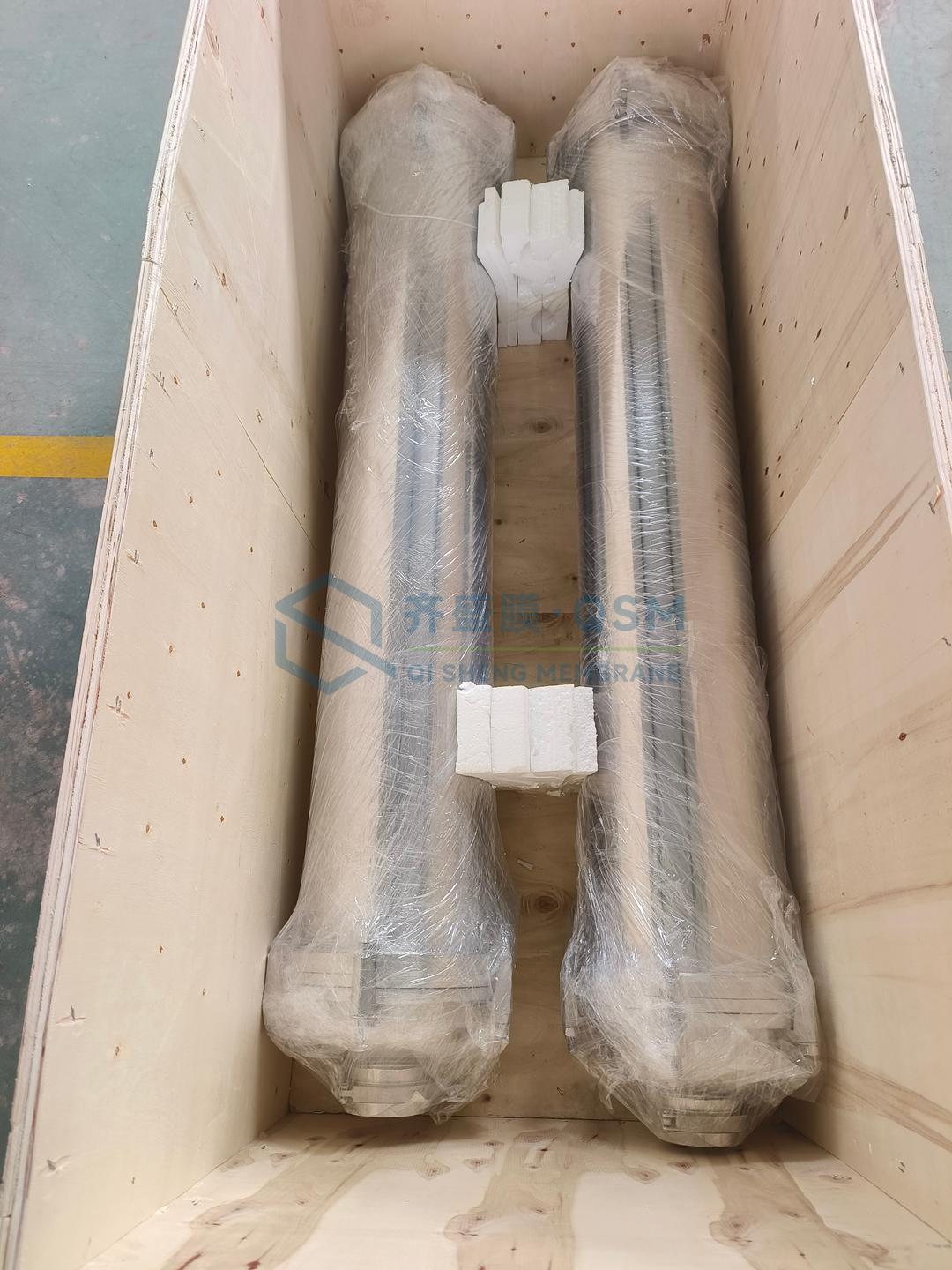

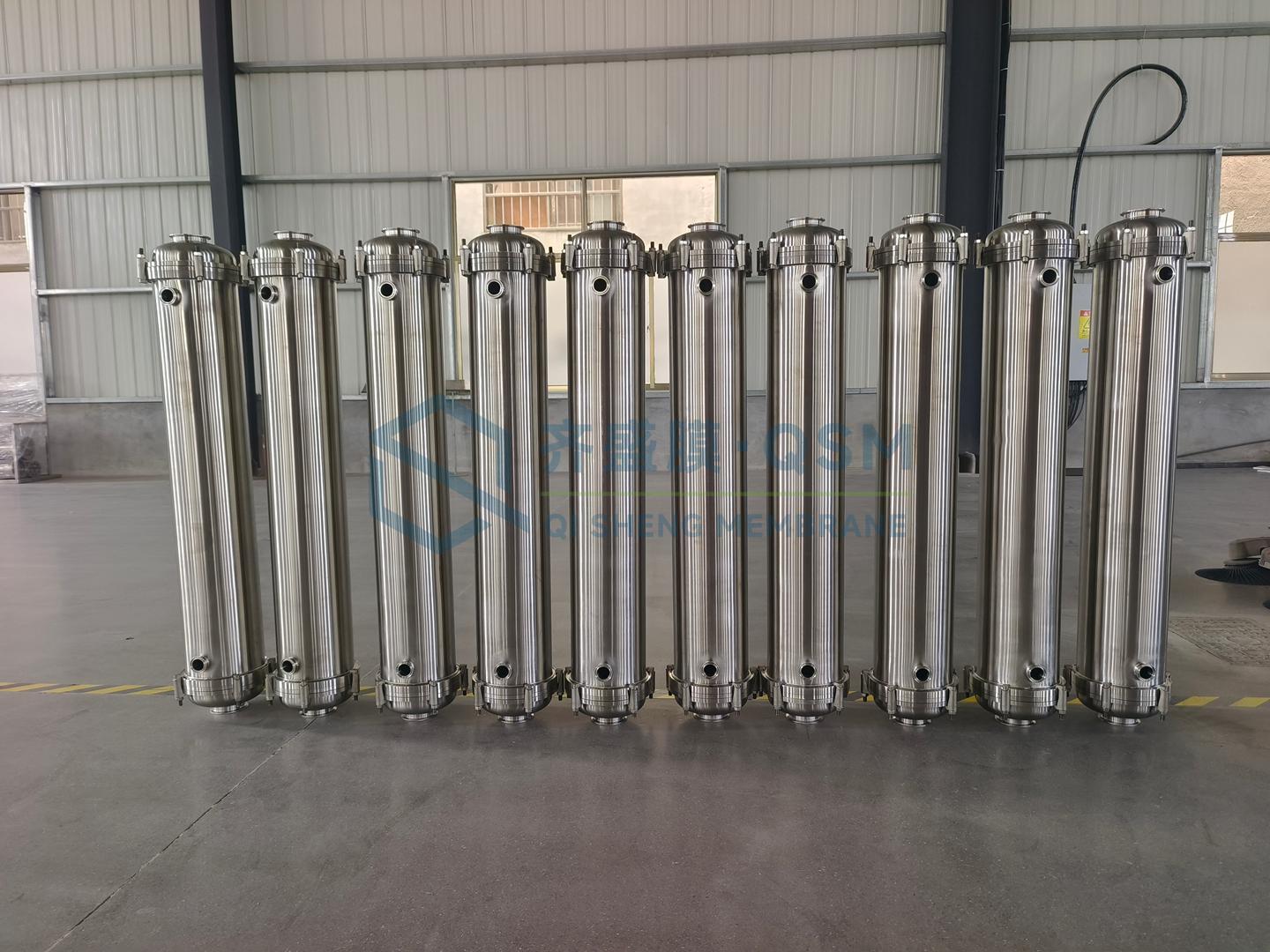

Ceramic membrane components are pressure resistant shells assembled with ceramic membrane components, which are assembled with materials such as shells, internal connectors, end plates, and sealing rings. Depending on industrial production needs, ceramic membrane components with different outer diameters and areas can be centrally loaded using membrane component shells of different specifications. The filling area of a single membrane module ranges from 0.02m2 to 40m2. The external design and sealing design of membrane components are crucial for the operation of ceramic membrane complete systems.
Basic technical parameters of ceramic membrane components
Number of membrane components loaded: 1 core, 3 cores, 7 cores, 12 cores, 19 cores, 37 cores, 61 cores, 76 cores, 91 cores, 138 cores, 241 cores, etc
Matching membrane element length and diameter: 100-1800mm/outer diameter: 25, 30, 40mm
Main materials: SUS304 (L), SUS316 (L), Ti, carbon steel with rubber, PVC, FRPP
Sealing materials: EPDM, Fluoro Rubber, Silicon, PTFE
Interface form: Flange, Clamp, Whorl coupling
Pressure rating: 0-1.0Mpa, 0-1.6Mpa, 0-2.5Mpa, 0-4.0Mpa
Standards: ISO, DIN/chemical grade, sanitary grade
